#include "bhy_uc_driver_constants.h"

Include dependency graph for bhy_uc_driver_types.h:

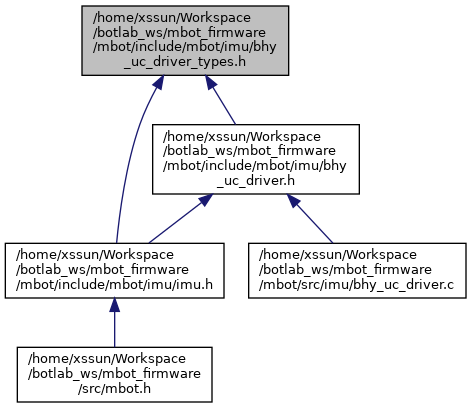

This graph shows which files directly or indirectly include this file:

Classes
struct	bhy_data_padding_t

struct	bhy_data_quaternion_t

struct	bhy_data_vector_t

struct	bhy_data_scalar_u8_t

struct	bhy_data_scalar_u16_t

struct	bhy_data_scalar_s16_t

struct	bhy_data_scalar_u24_t

struct	bhy_data_sensor_event_t

struct	bhy_data_uncalib_vector_t

struct	bhy_data_meta_event_t

struct	bhy_data_bsx_t

struct	bhy_data_debug_t

struct	bhy_data_pdr_t

struct	bhy_data_custom_t

union	bhy_data_generic_t

Macros
#define	BHY_PAGE_SYSTEM 1

#define	BHY_PARAM_SYSTEM_META_EVENT_CTRL 1

#define	BHY_PARAM_SYSTEM_FIFO_CTRL 2

#define	BHY_PARAM_SYSTEM_STAUS_BANK_0 3

#define	BHY_PARAM_SYSTEM_STAUS_BANK_1 4

#define	BHY_PARAM_SYSTEM_STAUS_BANK_2 5

#define	BHY_PARAM_SYSTEM_STAUS_BANK_3 6

#define	BHY_PARAM_SYSTEM_CUSTOM_VERSION 24

#define	BHY_PARAM_SYSTEM_WAKE_UP_META_EVENT_CTRL 29

#define	BHY_PARAM_SYSTEM_HOST_IRQ_TIMESTAMP 30

#define	BHY_PARAM_SYSTEM_PHYSICAL_SENSOR_STATUS 31

#define	BHY_PARAM_SYSTEM_PHYSICAL_SENSOR_PRESENT 32

#define	BHY_PARAM_SYSTEM_PHYSICAL_SENSOR_DETAIL_0 32

#define	BHY_PARAM_SYSTEM_PHYSICAL_SENSOR_DETAIL_ACC 33

#define	VS_NON_WAKEUP 0

#define	VS_WAKEUP 32

#define	VS_FLUSH_NONE 0x00

#define	VS_FLUSH_ALL 0xFF

#define	VS_FLUSH_SINGLE 0x01

#define	META_EVENT_1_INT_ENABLE_BIT (1<<0)

#define	META_EVENT_1_ENABLE_BIT (1<<1)

Enumerations
enum	bhy_virtual_sensor_t { VS_TYPE_ACCELEROMETER = VS_ID_ACCELEROMETER , VS_TYPE_GEOMAGNETIC_FIELD = VS_ID_MAGNETOMETER , VS_TYPE_ORIENTATION = VS_ID_ORIENTATION , VS_TYPE_GYROSCOPE = VS_ID_GYROSCOPE , VS_TYPE_LIGHT = VS_ID_LIGHT , VS_TYPE_PRESSURE = VS_ID_BAROMETER , VS_TYPE_TEMPERATURE = VS_ID_TEMPERATURE , VS_TYPE_PROXIMITY = VS_ID_PROXIMITY , VS_TYPE_GRAVITY = VS_ID_GRAVITY , VS_TYPE_LINEAR_ACCELERATION = VS_ID_LINEAR_ACCELERATION , VS_TYPE_ROTATION_VECTOR = VS_ID_ROTATION_VECTOR , VS_TYPE_RELATIVE_HUMIDITY = VS_ID_HUMIDITY , VS_TYPE_AMBIENT_TEMPERATURE = VS_ID_AMBIENT_TEMPERATURE , VS_TYPE_MAGNETIC_FIELD_UNCALIBRATED = VS_ID_UNCALIBRATED_MAGNETOMETER , VS_TYPE_GAME_ROTATION_VECTOR = VS_ID_GAME_ROTATION_VECTOR , VS_TYPE_GYROSCOPE_UNCALIBRATED = VS_ID_UNCALIBRATED_GYROSCOPE , VS_TYPE_SIGNIFICANT_MOTION = VS_ID_SIGNIFICANT_MOTION , VS_TYPE_STEP_DETECTOR = VS_ID_STEP_DETECTOR , VS_TYPE_STEP_COUNTER = VS_ID_STEP_COUNTER , VS_TYPE_GEOMAGNETIC_ROTATION_VECTOR = VS_ID_GEOMAGNETIC_ROTATION_VECTOR , VS_TYPE_HEART_RATE = VS_ID_HEART_RATE , VS_TYPE_TILT = VS_ID_TILT_DETECTOR , VS_TYPE_WAKEUP = VS_ID_WAKE_GESTURE , VS_TYPE_GLANCE = VS_ID_GLANCE_GESTURE , VS_TYPE_PICKUP = VS_ID_PICKUP_GESTURE , VS_TYPE_CUS1 = VS_ID_CUS1 , VS_TYPE_CUS2 = VS_ID_CUS2 , VS_TYPE_CUS3 = VS_ID_CUS3 , VS_TYPE_CUS4 = VS_ID_CUS4 , VS_TYPE_CUS5 = VS_ID_CUS5 , VS_TYPE_ACTIVITY_RECOGNITION = VS_ID_ACTIVITY }

enum	bhy_meta_event_type_t { BHY_META_EVENT_TYPE_NOT_USED = 0 , BHY_META_EVENT_TYPE_FLUSH_COMPLETE = 1 , BHY_META_EVENT_TYPE_SAMPLE_RATE_CHANGED = 2 , BHY_META_EVENT_TYPE_POWER_MODE_CHANGED = 3 , BHY_META_EVENT_TYPE_ERROR = 4 , BHY_META_EVENT_TYPE_ALGORITHM = 5 , BHY_META_EVENT_TYPE_SENSOR_ERROR = 11 , BHY_META_EVENT_TYPE_FIFO_OVERFLOW = 12 , BHY_META_EVENT_TYPE_DYNAMIC_RANGE_CHANGED = 13 , BHY_META_EVENT_TYPE_FIFO_WATERMARK = 14 , BHY_META_EVENT_TYPE_SELF_TEST_RESULTS = 15 , BHY_META_EVENT_TYPE_INITIALIZED = 16 }

enum	bhy_gp_register_type_t { BHY_GP_REG_20 = 0x4B , BHY_GP_REG_21 = 0x4C , BHY_GP_REG_22 = 0x4D , BHY_GP_REG_23 = 0x4E , BHY_GP_REG_24 = 0x4F , BHY_GP_REG_31 = 0x56 , BHY_GP_REG_32 = 0x57 , BHY_GP_REG_33 = 0x58 , BHY_GP_REG_34 = 0x59 , BHY_GP_REG_35 = 0x5A , BHY_GP_REG_36 = 0x5B , BHY_GP_REG_46 = 0x65 , BHY_GP_REG_47 = 0x66 , BHY_GP_REG_48 = 0x67 , BHY_GP_REG_49 = 0x68 , BHY_GP_REG_50 = 0x69 , BHY_GP_REG_51 = 0x6A , BHY_GP_REG_52 = 0x6B }

enum	bhy_data_type_t { BHY_DATA_TYPE_PADDING = 0 , BHY_DATA_TYPE_QUATERNION = 1 , BHY_DATA_TYPE_VECTOR = 2 , BHY_DATA_TYPE_SCALAR_U8 = 3 , BHY_DATA_TYPE_SCALAR_U16 = 4 , BHY_DATA_TYPE_SCALAR_S16 = 5 , BHY_DATA_TYPE_SCALAR_U24 = 6 , BHY_DATA_TYPE_SENSOR_EVENT = 7 , BHY_DATA_TYPE_UNCALIB_VECTOR = 8 , BHY_DATA_TYPE_META_EVENT = 9 , BHY_DATA_TYPE_BSX = 10 , BHY_DATA_TYPE_DEBUG = 11 , BHY_DATA_TYPE_CUS1 = 12 , BHY_DATA_TYPE_CUS2 = 13 , BHY_DATA_TYPE_CUS3 = 14 , BHY_DATA_TYPE_CUS4 = 15 , BHY_DATA_TYPE_CUS5 = 16 }

enum	bhy_meta_event_fifo_type_t { META_EVENT_IN_NON_WAKEUP_FIFO = 1 , META_EVENT_IN_WAKEUP_FIFO = 29 }

enum	bhy_physical_sensor_index_type_t { PHYSICAL_SENSOR_INDEX_ACC = 0 , PHYSICAL_SENSOR_INDEX_MAG , PHYSICAL_SENSOR_INDEX_GYRO , PHYSICAL_SENSOR_COUNT }

Detailed Description

header file of bhy_uc_driver.c

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

Neither the name of the copyright holder nor the names of the contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE

The information provided is believed to be accurate and reliable. The copyright holder assumes no responsibility for the consequences of use of such information nor for any infringement of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of the copyright holder.

Date: 12/15/2016
